Qi LED floodlight for indoor and outdoor applications

IP Protection grade

IP 67

Protection class

I

CRI

≥80

Voltage

220-240 V AC 50/60 Hz

Max weight

3,5 Kg

Warranty

5 Years

Body

Body in die-cast aluminum alloy UNI EN 46100 (Low copper content). First layer in epoxy primer + painting with polyester powder, resistant to the saline mist, stabilzed to UV rays, Class I. Screws made of AISI 304 stainless steel. Tempered sodium-calcic glass. Guaranteed 93% transparency. Silicone gaskets. Body RAL 9010.

Source

LED light source with color temperature standard Natural White 4000K. 2700K, 3000K, 5000K and 5700K versions available on request. High color rendering coefficient CRI≥80. Optical PC HT lenses.

Voltage

External driver in ON-OFF (dimmable, DALI, DALI 2 available versions).
Voltage 220-240 V AC 50/60 Hz.
Operating temperature -40 ° + 45 °.

Optics

15°, 30°, 60°, 90°, 120° symmetrical optics, 45°, 55° or 60° asymmetrical optics. The body is made of die-cast aluminum painted polyester powder.

Applications

Big boards, Facades decoration, Shop windows

Note

2700K, 3000 K, 5000 K and 5700 K versions available on request.
Driver available on request in dimmable and DALI versions.

Optical group lifetime

≥100.000 hr L85B15

Colours

Further information about the product

  Join our Mailing List to find out all the updates on our products

  I consent to the processing of personal data according to the current Privacy legislation. Consult the Privacy Policy

(*) Mandatory fields.

Luminous distribution


  • Beam 15°
  • Beam 30°
  • Beam 60°
  • Beam 90°
  • Beam ASIM 45°
  • Beam ASIM 55°

ON-OFF product codes
(For the Dimmer and Dali version codes see the technical data sheets)

Slide the table to the right

Code Source Power Fitting output Light source output Temperature CRI Beam Type of beam Optional control Datasheet IES LDT
Code Source Power Fitting output Light source output Temperature CRI Beam Type of beam Optional control Datasheet IES LDT
L00QI4060BL10100 LED 100 W 13526 lm 17100 lm 4000 K ≥80 60° Sym. 60° Dimmer - DALI
L00QI4030BL10100 LED 100 W 13703 lm 17100 lm 4000 K ≥80 30° Sym. 30° Dimmer - DALI
L00QI4090BL10100 LED 100 W 13420 lm 17100 lm 4000 K ≥80 90° Sym. 90° Dimmer - DALI
L00QI40A1BL10100 LED 100 W 12975 lm 17100 lm 4000 K ≥80 A1 Asym. 45° Dimmer - DALI
L00QI40A2BL10100 LED 100 W 12781 lm 17100 lm 4000 K ≥80 A2 Asym. 55° Dimmer - DALI
L00QI4015BL10100 LED 100 W 14121 lm 17100 lm 4000 K ≥80 15° Sym. 15° Dimmer - DALI
L00QI40BABL10100 LED 100 W 12814 lm 17100 lm 4000 K ≥80 120° Sym. 120° Dimmer - DALI
L00QI40A3BL10100 LED 100 W 12680 lm 17100 lm 4000 K ≥80 A3 Asym. 60° Dimmer - DALI

Download the instruction sheet here:

Available also in the versions 2700K, 3000K, 5000K and 5700K. For different colour temperatures do not hesitate to contact us

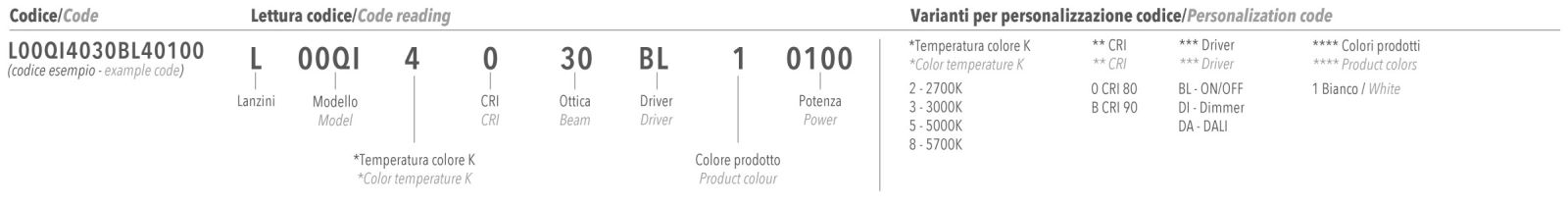

How to read and compose a new code:
